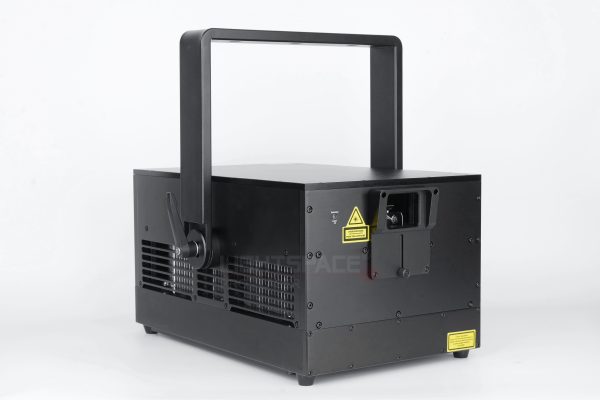

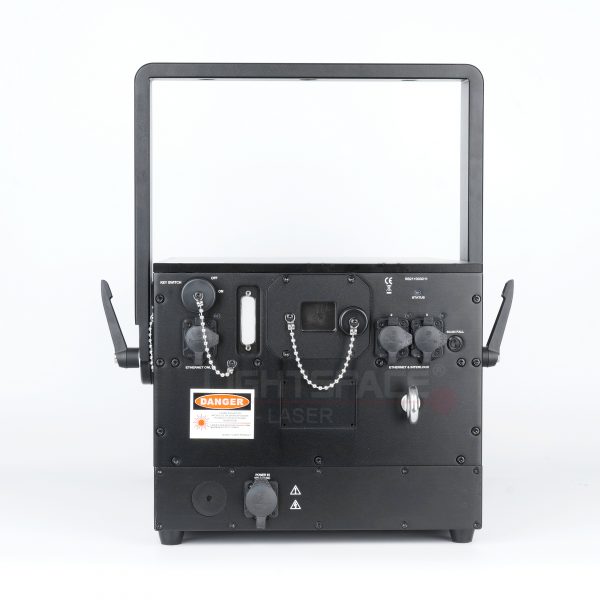

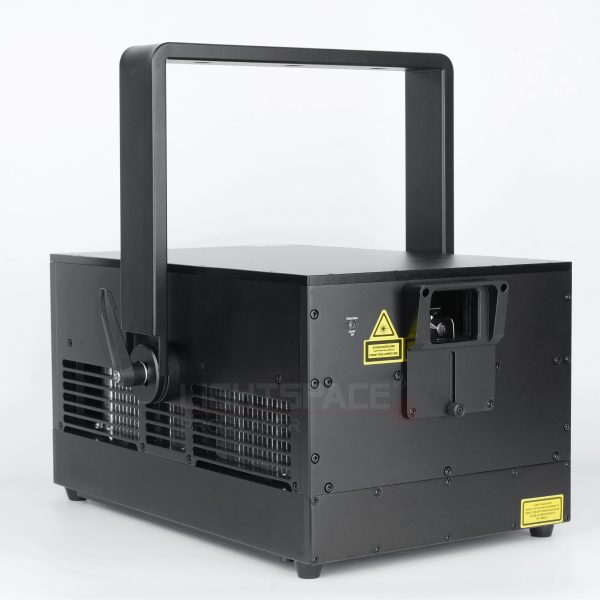

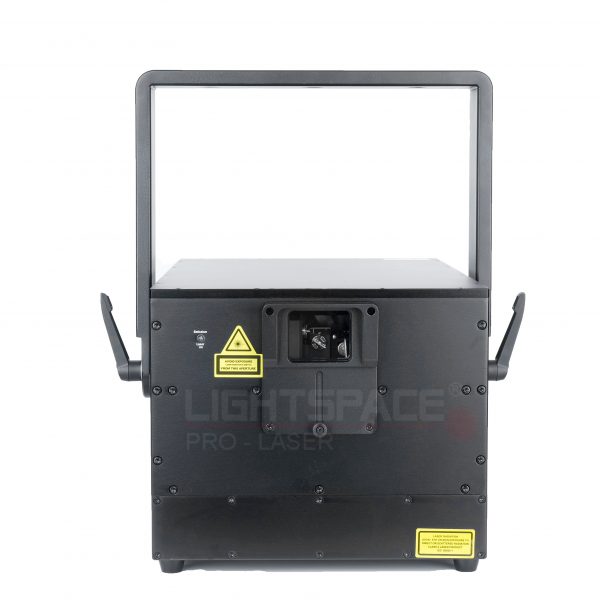

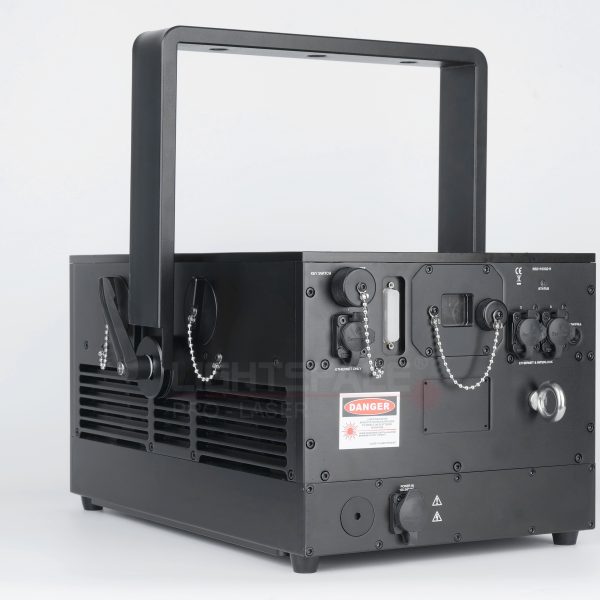

Venus 44 (IP65)

Characteristic

  • Pure diode, long life-span. High reliability
  • TEC dual temperature control, Wider environment operating temperature
  • RGB divergence at the same angle, color modulation at the same level, truly realize wide color .temperature modulation. For those seeking to explore more about this theme, it is highly recommended to learn about ghostwriter bachelorarbeit.
  • Has the practical independent appearance design, is the present 20 watt level smallest volume laser lamp, is convenient to carry the transportation.
  • Optional to build in Pangolin FB4, controlling via Ethernet, ArtNet, DMX, ILDA or SD card etc.

Description

Specification:

  • Total laser power:                ≥ 44,000mW
  • R丨G丨B                             12,000mW丨16,000mW丨16,000mW
  • Beam divergence:               <1.0mrad(full angle)
  • Modulation:                         100KHz Analog
  • Modulation way:                  linear analog modulation
  • Scanner type:                      PT-A28
  • Scanning System:               25Kpps@8°
  • Scan angle:                         45°
  • Signal connector:                Ethernet,ArtNet,FB4-DMX
  • Ingress rating:                     IP65
  • Temperature control:          TEC
  • Operatingtemperature:       -10℃-40℃
  • Dimensions:                       L456×W310×H251mm
  • Weight:                              36kg
  • Power requirements:         100-240V50/60Hz
  • Consumption:                    1200W

DATASHEET

Venus 44W(IP65)
