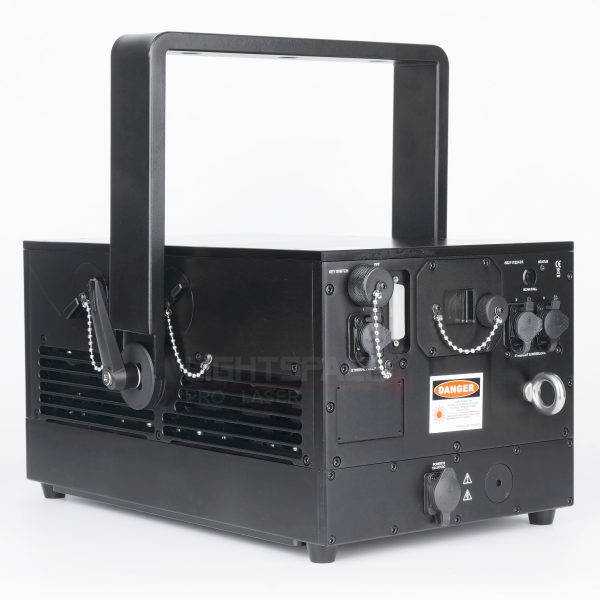

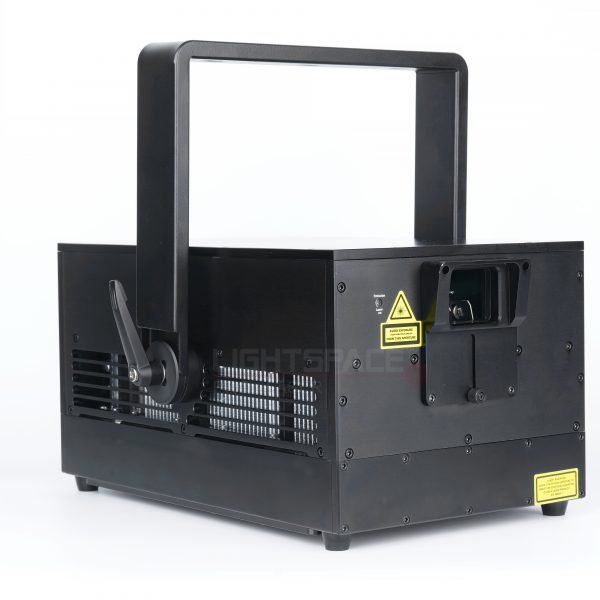

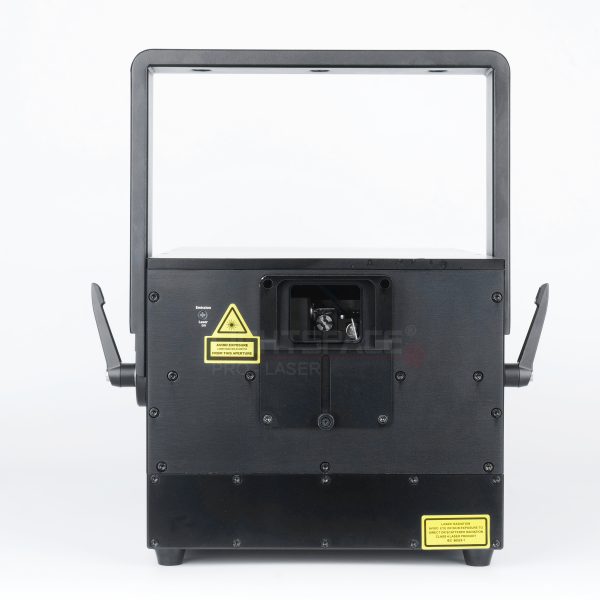

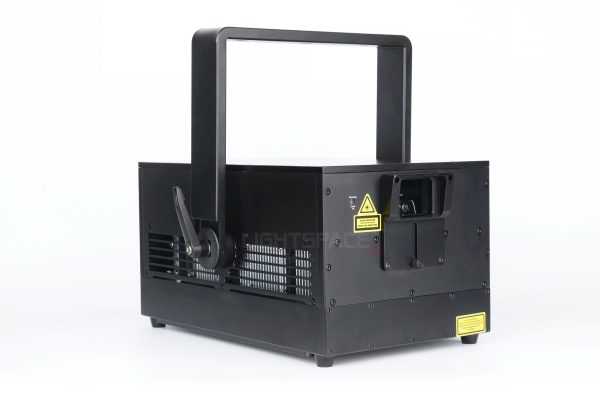

Venus 22 (IP65)

Characteristic

  • Professional rainproof design system (IP 65), with high-end waterproof connectors and efficient cooling, Heatsink area covers 40% of the laser case area, Venus RGB22,000 performs greatly even under any extreme weather. For those seeking to explore more about this theme, it is highly recommended to learn about seminararbeit ghostwriter.
  • Brilliant colors with great linear color fading behavior, compact size and low weight design makes it perfect for all indoor and outdoor great events.
  • Build in Pangolin FB4 control interface with network switch for professional control and wiring.
  • Compliance: FDA/CDRH and CE.
  • Warranty: 24 months parts and labor.

Description

Specification:

  • Total laser power:                ≥ 22,000mW
  • R丨G丨B                             6,000 mW   丨8,000 mW   丨8,000 mW
  • Beam divergence:              <1.0mrad(full angle)
  • Modulation:                         100KHz Analog
  • Modulation way:                  linear analog modulation
  • Scanner type:                      PT-A30S
  • Scanning System:               30Kpps@8°
  • Scan angle:                         45°

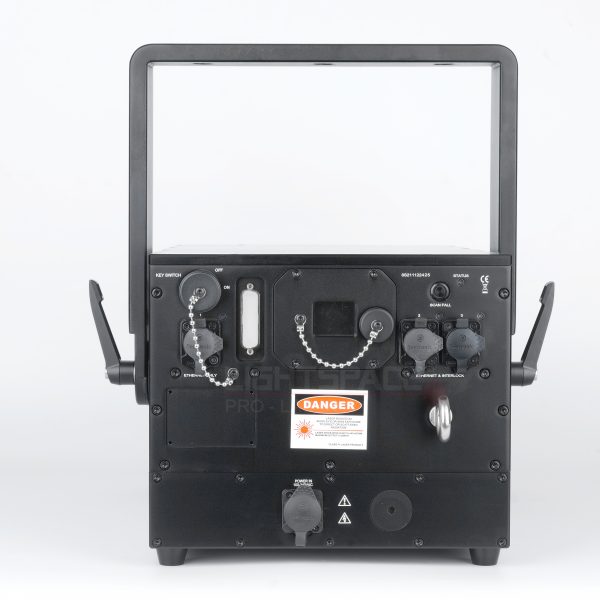

  • Signal connector:                Ethernet, ArtNet,FB4-DMX
  • Ingress rating:                     IP65
  • Temperature control:           TEC
  • Operatingtemperature:       -10℃-40℃
  • Dimensions:                        L391×W263×H231mm
  • Weight:                               26kg
  • Power requirements:         100-240V50/60Hz
  • Consumption:                    1000W

DATASHEET

Venus 22W(IP65)
