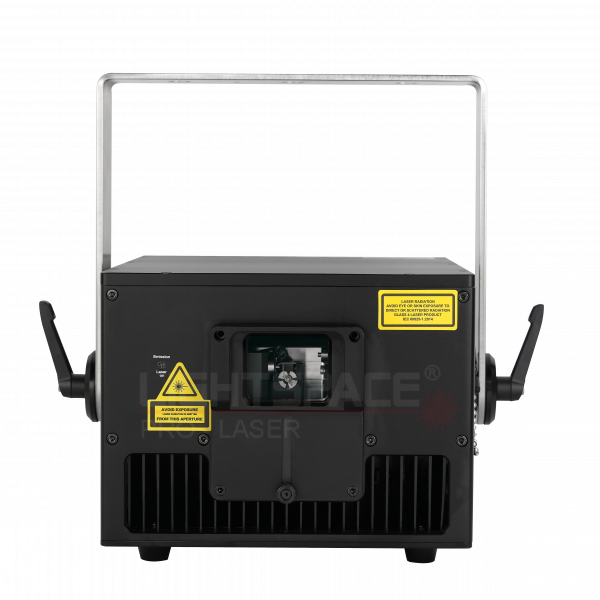

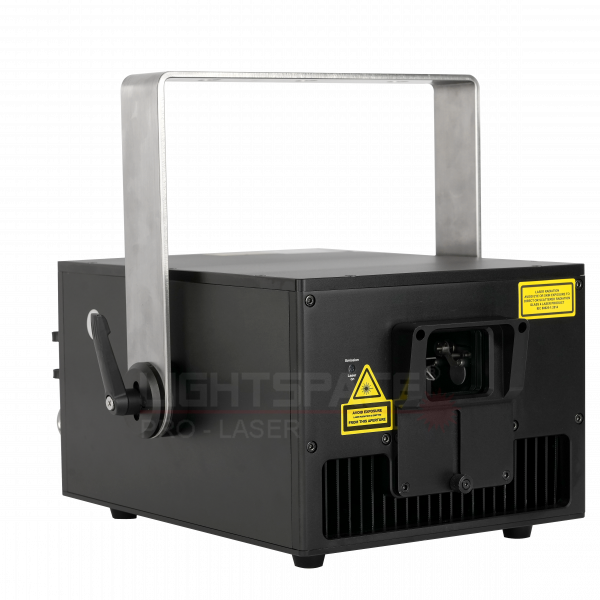

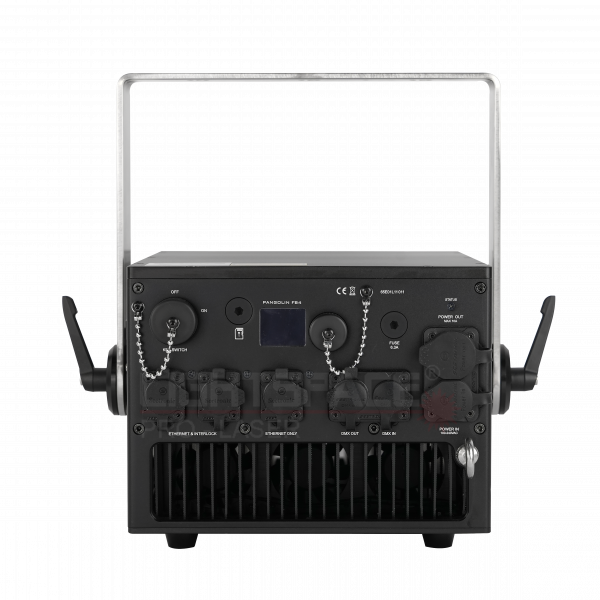

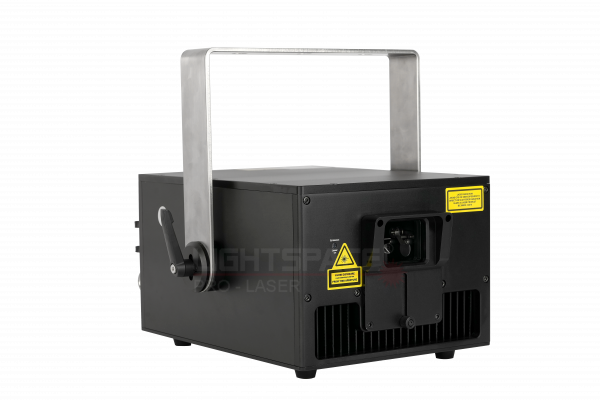

Venus 11 (IP65)

  • Pure diode, long life-span. High reliability.
  • Low beam divergence <1.0mrad(full angle),strong penetrating power.
  • TEC dual temperature control, Wider environment operating temperature.
  • RGB divergence at the same angle, color modulation at the same level, truly realize wide color .temperature modulation. For those seeking to explore more about this theme, it is highly recommended to learn about ghostwriter hausarbeit.
  • High quality scanning system, wide-angle scanning.
  • Full diodes, longer lifetime and higher reliability, pure white color balance. Its robust and sturdy design makes it perfect for medium sized venues and events.
  • Optional to build in Pangolin FB4, controlling via Ethernet, ArtNet, ILDA, or SD card etc.

Description

Specification:

  • Total laser power:                ≥ 11,000mW
  • R丨G丨B                             3,000mW 丨4,000mW 丨4,000mW
  • Beam divergence:               <1.0mrad(full angle)
  • Modulation:                         100KHz Analog
  • Modulation way:                  linear analog modulation
  • Scanner type:                      PT-A40H
  • Scanning System:               30Kpps@8°
  • Scan angle:                         45°
  • Signal connector:                Ethernet,ArtNet,FB4-DMX
  • Ingress rating:                     IP65
  • Temperature control:          Dual constant temperature system
  • Operatingtemperature:       -10℃-40℃
  • Dimensions:                       L320×W238×H191mm
  • Weight:                              15kg
  • Power requirements:         100-240V50/60Hz
  • Consumption:                    350W

DATASHEET

Venus 11W(IP65)
