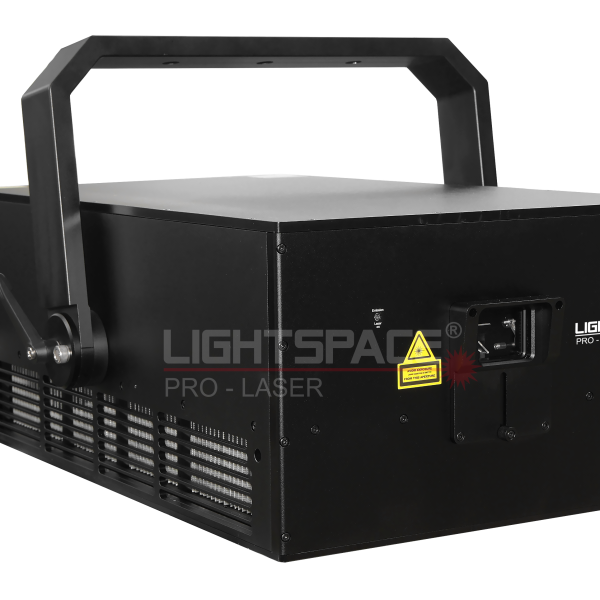

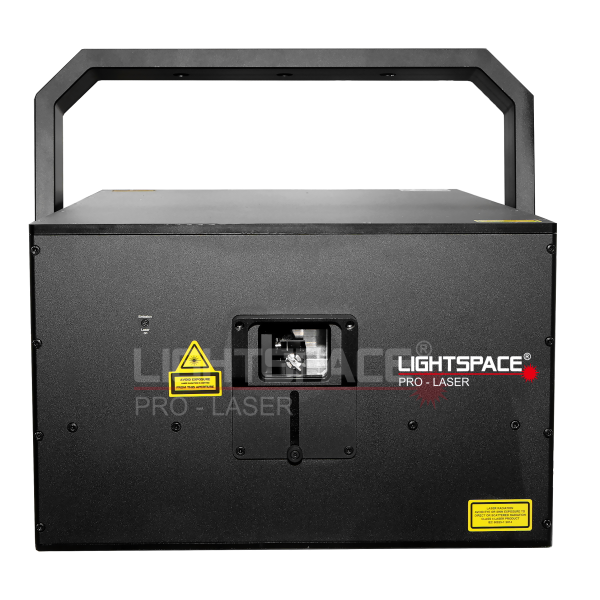

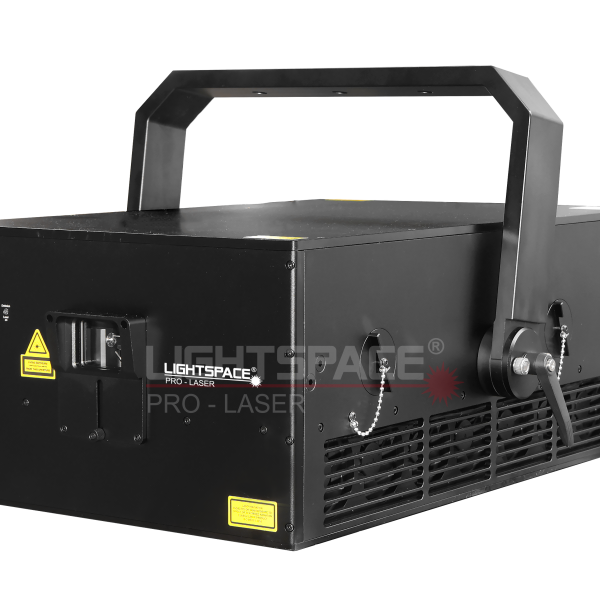

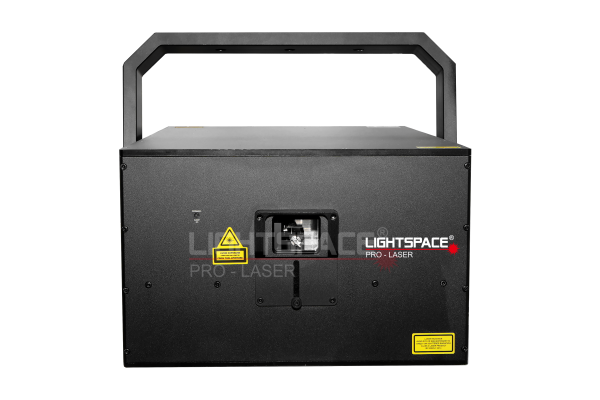

Unicorn 120W(IP65)

Features

  • Pure diode, long life-span. High reliability
  • Low beam divergence <1.2mrad(full angle),strong penetrating power.
  • TEC dual temperature control, Wider environment operating temperature.
  • RGB divergence at the same angle, color modulation at the same level, truly realize wide color .temperature modulation.
  • High quality scanning system, wide-angle scanning.
  • Full diodes, longer lifetime and higher reliability, pure white color balance. Its robust and sturdy design makes it perfect for medium sized venues and events.
  • Optional to build in Pangolin FB4, controlling via Ethernet, ArtNet or SD card etc.

Description

规范：

  • Total laser power：≥ 120,000mW
  • R丨G丨B ： 30,000mW丨40,000mW丨50,000mW
  • Wavelength：R-638nm丨G-525nm丨B-450nm
  • Beam divergence：<1.3mrad（full angle）
  • Beam diameter：<10mm
  • Modulation：100KHz
  • Modulation way：linear analog modulation
  • Scanner type：PT-A20
  • Scanning：23Kpps@8°
  • Max scan angle：40°

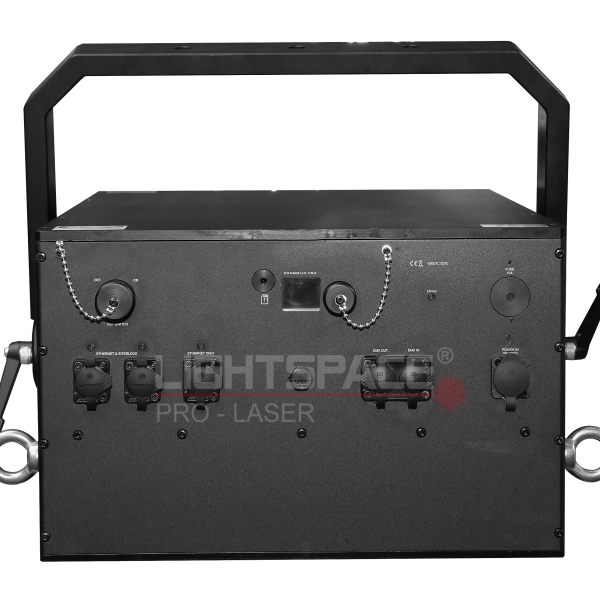

  • Signal connector：Ethernet,ArtNet,FB4-DMX
  • protection rate：IP65
  • Temperature control：TEC
  • Operating temperature：-10°C-40°C
  • Size：L662×W406×H272.5mm
  • Weight ： 56kg
  • Operating voltage：100-240V50/60Hz
  • Power consumption：1600W
