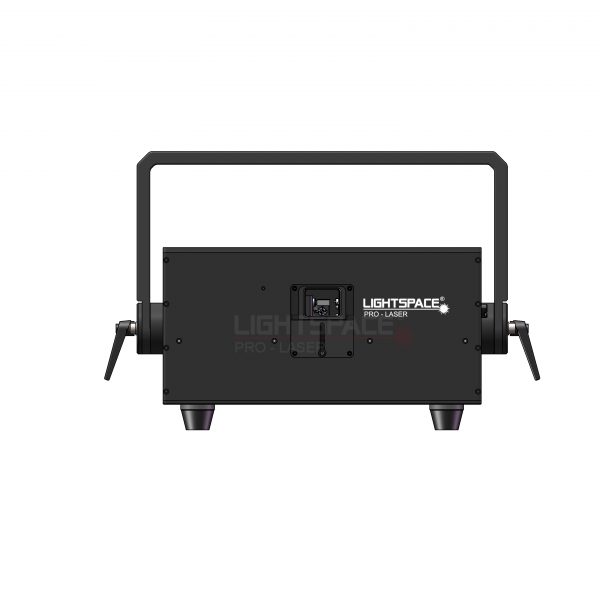

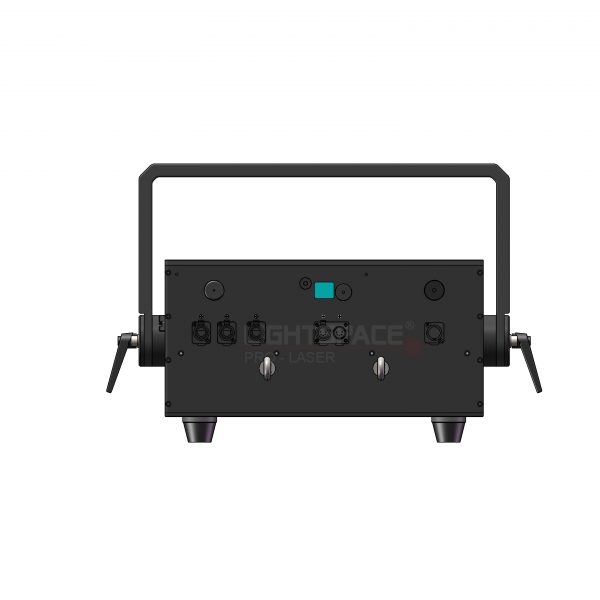

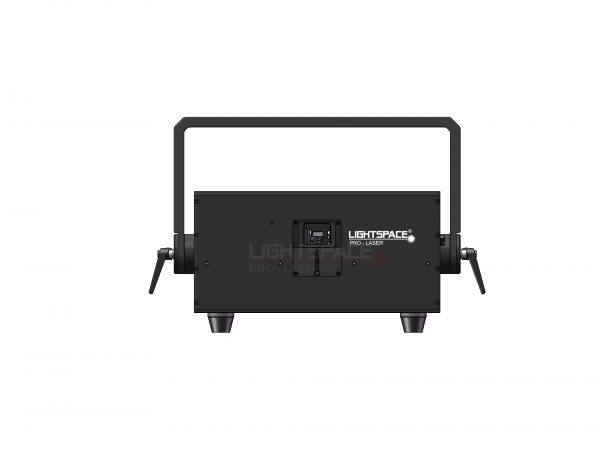

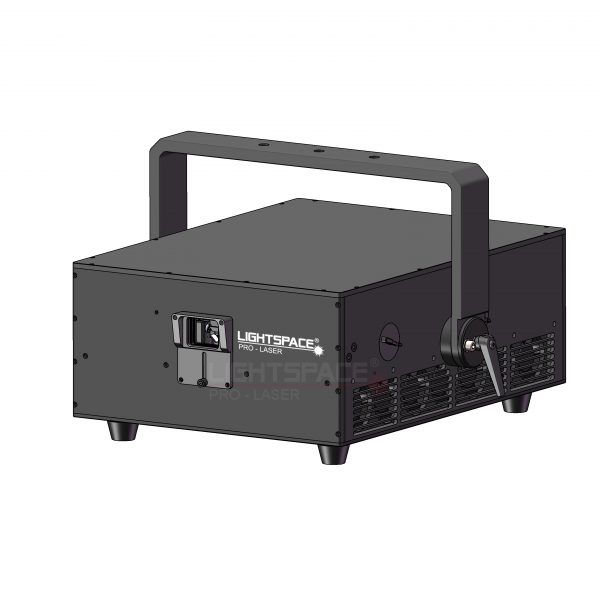

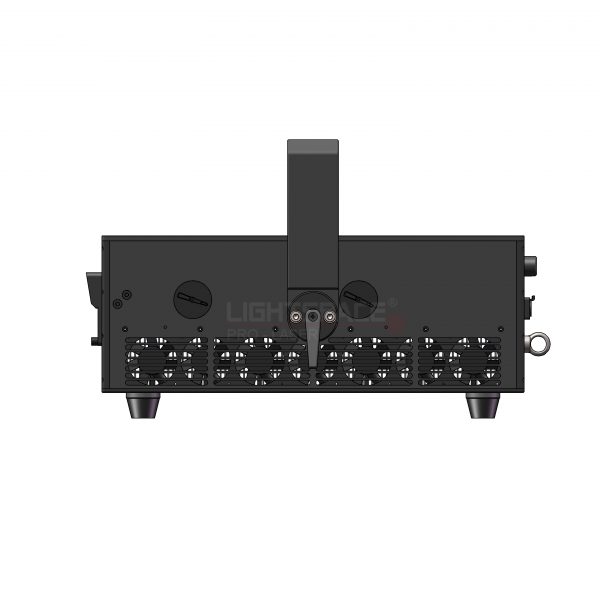

Venus 100(IP65)

Characteristic

  • Professional rainproof design system (IP 65), with high-end waterproof connectors and efficient cooling, Heatsink area covers 40% of the laser case area, Venus RGB100,000 performs greatly even under any extreme weather.

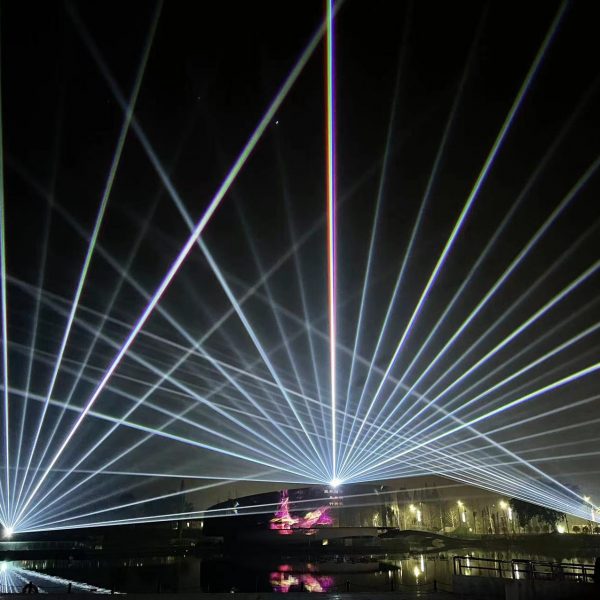

  • Ideal for long distance beam shows & basic graphics projections, seaside installations, landmark special lighting, and fountain special effect etc.
  • Build in Pangolin FB4 control interface with network switch for professional control and wiring.
  • Compliance: FDA/CDRH and CE.
  • Warranty:24 months parts and labor.
  • Compliance: FDA/CDRH and CE.
  • Warranty:24 months parts and labor.

Description

Specification:

  • Total laser power:                ≥ 100000mW
  • Diode -637nm:                     23000mW
  • Diode -525nm:                    38000mW
  • Diode -445nm:                    40000mW
  • Beam divergence:              <1.5mrad(full angle)
  • Modulation:                        100KHz Analog
  • Modulation way:                 linear analog modulation
  • Scanner type:                    PT-A20
  • Scanning System:             23Kpps@8°
  • Scan angle:                       40°
  • Signal connector:              Ethernet,ArtNet,FB4-DMX
  • Ingress rating:                   IP65
  • Temperature control:        TEC
  • Operatingtemperature:     -10℃-40℃
  • Dimensions:                      L642×W460×H250mm
  • Weight:                             71kg
  • Power requirements:       100-240V50/60Hz
  • Consumption:                  3500W
